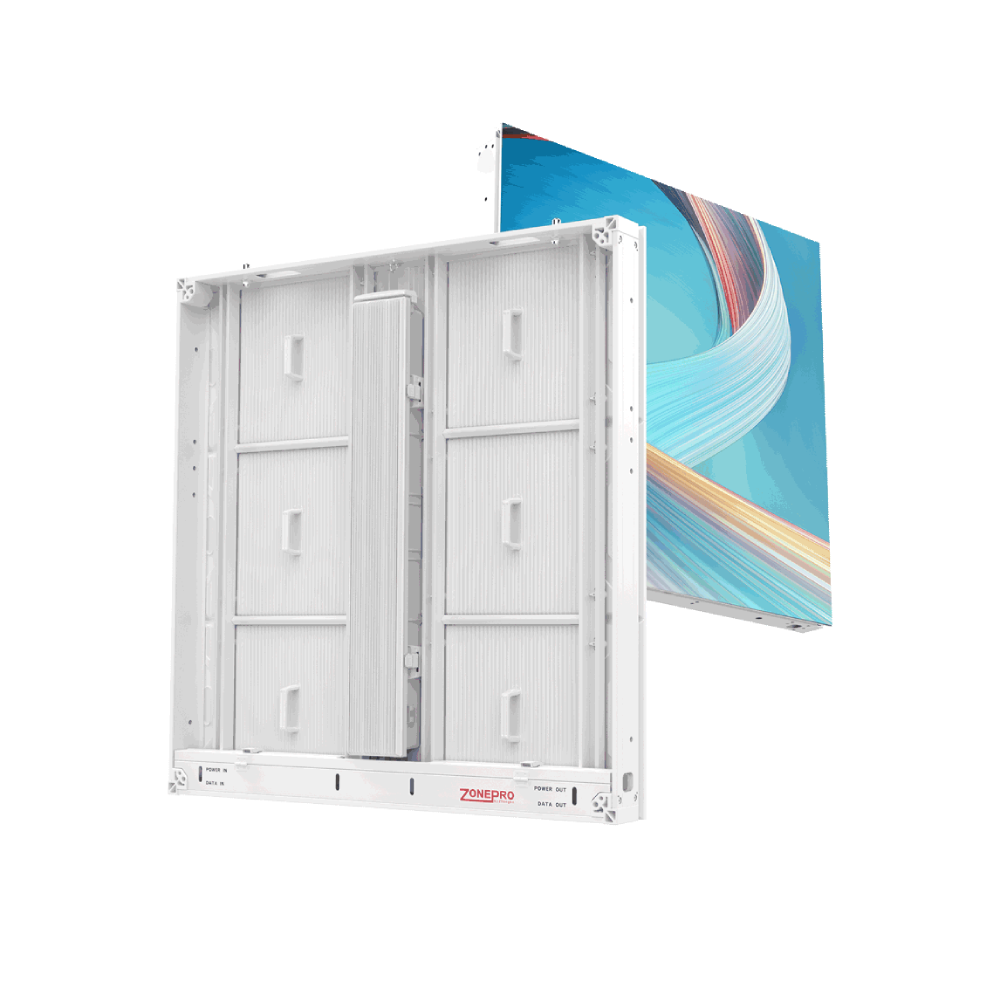

Media Captain
Designed for outdoor advertising and large-format digital communication, mediaCaptain combines high brightness, efficient power consumption and robust weather protection. With brightness of up to 8,500 nits, an IP66-rated cabinet and flexible front and rear maintenance, it delivers reliable visual performance for billboards, commercial installations and high-impact outdoor media applications.
Energy-Efficient High-Brightness Display
Built for Outdoor Performance.
A high-brightness outdoor LED display engineered for impactful advertising, energy-efficient operation and reliable performance in demanding outdoor environments.
- 01Up to 8,500 Nits
- 02Energy-Efficient Design
- 03IP66 Weather Protection
- 04Front & Rear Access
- 05Advanced Heat Dissipation
- 06Lightweight Aluminium Cabinet
Key Features.
With brightness levels of up to 8,500 nits, mediaCaptain delivers clear, vivid visuals designed to stand out in bright outdoor environments. Its high-contrast design helps advertisements and digital content remain visually impactful throughout the day.
Engineered to balance brightness with power consumption, mediaCaptain uses an optimised LED circuit design and high-efficiency components. Power consumption is rated at up to 450 W/m² for select configurations, supporting more efficient operation in large-scale outdoor installations.
Built for demanding outdoor conditions, mediaCaptain features an IP66-rated cabinet and module protection. This helps safeguard the display against dust and water ingress, supporting dependable performance in exposed installation environments.
The display incorporates die-cast aluminium components and heat-dissipation structures designed to manage operating temperatures. Effective thermal management supports stable performance and reliable operation during extended use.
With access from both the front and rear, mediaCaptain simplifies servicing and routine maintenance. This flexibility helps accommodate different installation structures and site-access requirements.
Featuring a die-cast aluminium cabinet weighing approximately 28 kg/m², mediaCaptain supports outdoor installations that require a balance of structural strength and manageable display weight.
Media Captain
at a Glance.
The full technical sheet is in the product catalogue.
| ITEM | P5 | P6.67 | P8 | P10 |
|---|---|---|---|---|
| LED | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Pixel Pitch (mm) | 5 | 6.67 | 8 | 10 |
| Module Resolution | 96x64 | 72x48 | 60x40 | 48x32 |
| Module Size (W x H mm) | 480x320 | 480x320 | 480x320 | 480x320 |
| Pixel Density (pixels/m²) | 40,000 | 22,500 | 15,625 | 10,000 |
| Cabinet Size (WxH mm) | 960x960 | 960x960 | 960x960 | 960x960 |
| Cabinet Weight (kg/m²) | 28 | 28 | 28 | 28 |
| Gray Scale (bits) | ≥14 | ≥14 | ≥14 | ≥14 |
| Cabinet Material | Diecast Aluminum | Diecast Aluminum | Diecast Aluminum | Diecast Aluminum |
| Ingress Protection | IP66/IP66 | IP66/IP66 | IP66/IP66 | IP66/IP66 |
| Maintenance | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| Refresh Rate (Hz) | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Brightness (nits) | 5,000-7,000 | 6,000-8,500 | 6,500-8,500 | 6,500-8,500 |
| Contrast | 8,000 : 1 | 9,000 : 1 | 10,000 : 1 | 11,000 : 1 |
| Power Consumption (W/m²) | 650 / 215 | 450 / 150 | 450 / 150 | 450 / 150 |
