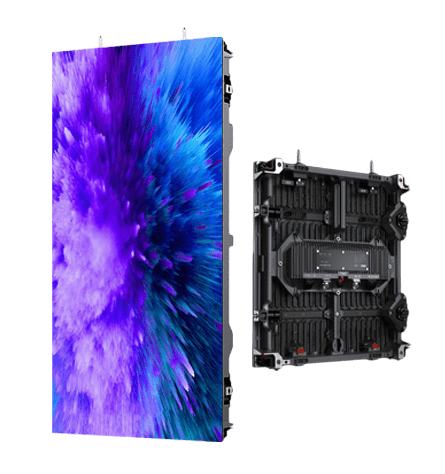

Quatro Plus
Quatro Plus is a professional rental LED display engineered for XR, broadcast and high-end production environments, where camera performance, visual precision and dependable deployment are critical.
Engineered for the Broadcast.
Ready for the Camera.
Quatro Plus is designed for camera-critical environments where LED performance directly impacts the final shot. Its rental-ready architecture combines production-grade visual performance with the flexibility needed for XR studios, broadcast sets, virtual production and live events.
- 01XR Production Ready
- 02Broadcast-Grade Performance
- 03High-Refresh Visuals
- 04Rental-Ready Design
Made for Camera-Critical Content.
Built for Production-Grade Performance.
Designed for camera-facing applications where flicker, scan lines and visual inconsistencies can compromise the final image.
Built for extended-reality environments where LED walls become an active part of the virtual production workflow.
High refresh performance helps deliver smooth, clean visuals for professional cameras and fast-moving production content.
Fine-pitch LED creates a continuous visual surface suited to immersive sets, broadcast backgrounds and virtual environments.
A modular rental design enables efficient installation, dismantling and reconfiguration between productions.
Designed to handle the demands of XR, broadcast, virtual production and other professional environments where display performance matters.
Quatro Plus
at a Glance.
The full technical sheet is in the product catalogue.
| Pixel Pitch (mm) | QT1.5 | QT2.6 | QT2.9 | QT3.4 |
|---|---|---|---|---|
| LED Configuration | SMD1212 (GOB) | SMD1515 | SMD2020 | SMD2020 |
| Pixel Density (pixels/m²) | 40,960 | 147,456 | 112,896 | 82,944 |
| Brightness (cd/m²) | ≥1000 | |||
| Module Size (W x H mm) | 250x250 | 250x500 | ||
| Panel Size (W x H mm) | 500x500 | 500x1000 | ||
| Module Resolution (pixels) | 320x320 | 192x384 | 168x336 | 144x288 |
| Panel Weight (kg/pc) | 9kg | 12kg | ||
| Cabinet Materials | Diecast Magnesium | |||
| Curveable | -6°, -3°, 0° | -6°, -3°, 0°, +3°, +6° | ||
| Power Consumption (Max/Avg) W/m² | 420/140 | |||
| Ingress Progress | IP30 | |||
| Refresh Rate | 7680Hz | |||
| Gray Scale | ≤16 bits | |||
| Frame Frequency | 236Hz | |||
| Scan Ratio | 1/20 | 1/16 | 1/14 | 1/12 |
Have a Display Project in Mind?
Let's identify the right display solution for your environment, viewing requirements and visual objectives.
